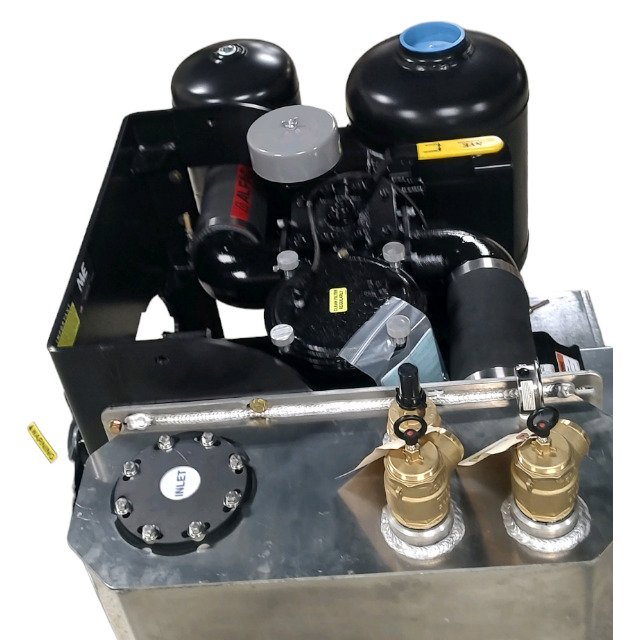

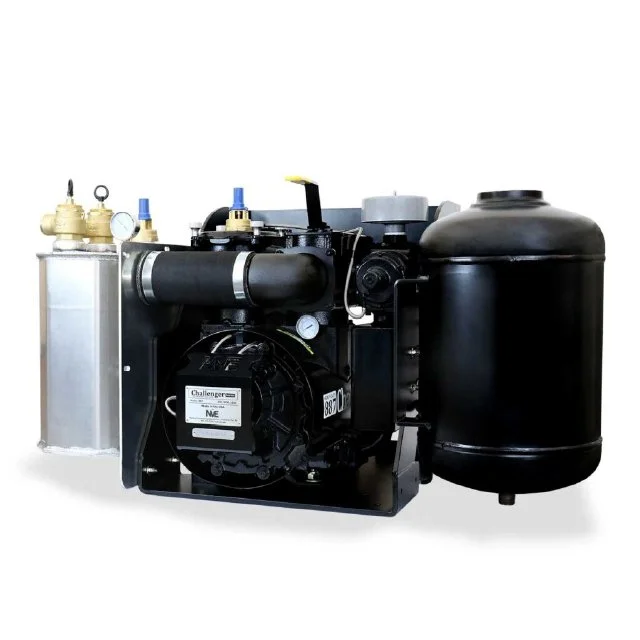

NVE 887 PRO Max Vacuum Pump Package

#117-887P-Max-FD | FREE SHIPPING IN THE US

FEATURES

• Proven crash protection allowing all major components to survive a catastrophic failure

• Four-point automatic lubrication system

• Multiple drive options (gearbox and hydraulic)

• Integral, easily accessible, final filter

• Vane flush port with valve

• Vane wear inspection port through the filter

• Enhanced axial load capabilities

• Lifetime warranty against cracked housing

• Two-year warranty against manufacturer defect

• Vacuum-controlled ballast air cooling system

• Attached ballast silencing system

• An enhanced exhaust check that provides minimal free air obstruction

• Designed, built, and supported in the US

FAN-COOLED 887 CHALLENGER | SPECIFICATIONS

• AIR FLOW – FREE AIR 532 CFM

• MAXIMUM VACUUM 28″ Hg

• OPERATING RANGE – RPM 1100 1200

• HP REQUIRED @ FULL VACUUM 30 33

• HP REQUIRED @ 10 PSI 27 31

• HP REQUIRED @ 15 PSI 27 36

• HP REQUIRED @ 20 PSI 33 42

• HP REQUIRED @ 25 PSI 38 48

• HP REQUIRED @ 30 PSI 50 54

• PORTING SIZE 4″

• Vacuum pump included: specify muffler location (left or right)

• 14” round oil catch muffler

• High-efficiency aluminum moisture trap

• Accessible 6” stainless steel float ball

• BUNA positive shut-off ball seat

• 2” lever drain valve

• Blank intake flange standard (other fittings available)

• Vacuum/pressure relief valve and gauge

• All elbows, fittings, and high temp hoses are factory-connected

• Right-hand or left-hand muffler location available

• High-efficiency intake exhaust silencer

• Engineered, designed, and tested in the USA
